Nitrogen generator system:
Our psa nitrogen generator system mainly includes:
air compressor,dryer,filters,oxygen generator, gas buffer tank.
Easy operation :connect the nitrogen generator with air compressed
system
Advantages: just needs little cost and small floor space. be
designed a skid.
Product Description
1.Product Name: PSA Nitrogen Generator

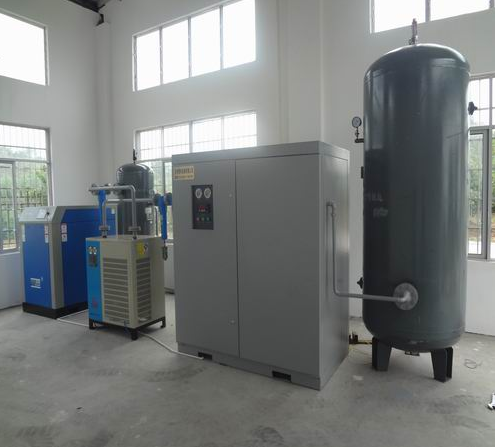

A full installation requires air compressor, refrigerated air
dryer, filters, air tank, nitrogen generator and gas buffer tank.
We supply full installations but each component, and other optional
supply like boosters, high
pressure compressors or filling stations can also be bought
separately.
Nitrogen Gas Generator specifications:
1. Nitrogen capacity: 3~2000Nm3/h
2. Nitrogen purity: 95
%, 99%, 99.5%, 99.9%, 99.99%, 99.999%...
3. Nitrogen pressure from the Nitrogen Generator: 1-7bar
4. Skid-mounted enable an easy installation and transportation.
Features of our Nitrogen Gas Generator:
(1) The Nitrogen Generator is equipped with a stable Atlas Copco
screw air compressor;
(2) The Nitrogen Generator is equipped with Siemens PLC and SMC or
CKD valves;
(3) Fewer moving parts enable the Nitrogen Gas Generator more
reliable and less maintenance jobs;
(4) The Nitrogen Generator does not need foundation base;
(5) The Nitrogen Generator does not need cooling water;
(6) The Nitrogen Generator is skid-mounted, very easy to be
transported and installed;
(7) The Nitrogen Generator is very easy to be operated, unmanned
operation can be realized;
(8) Consumable parts: only filter elements, replaced every
6000-8000hours. Maintenance cost is very low.
Specifications:
| No | Model | Capacity(Nm3/h) | Purity | Power(KW) | Overall size(mm) |
1 2 3 4 | TY-3-39 TY-5-29 TY-5-295 TY-8-295 | 3 5 5 8 | 99.9% 99.5% 99% 95% |
0.5 |
1800*1400*1500 |
5 6 7 8 | TY-5-49 TY-8-39 TY-12-295 TY-15-29 | 5 8 12 15 | 99.99% 99.9% 99.5% 99% |
0.5 |
1800*1400*1800 |
9 10 11 12 | TY-10-49 TY-15-39 TY-25-295 TY-30-39 | 10 15 25 30 | 99.99% 99.9% 99.5% 99% |
0.5 |
2000*1700*2250 |
13 14 15 16 | TY-15-49 TY-22-39 TY-35-295 TY-45-29 | 15 22 35 45 | 99.99% 99.9% 99.5% 99% | 0.5 | 2100*1800*2200 |
17 18 19 20 | TY-20-49 TY-30-39 TY-50-295 TY-60-29 | 20 30 50 60 | 99.99% 99.9% 99.5% 99% | 0.5 | 2200*1800*2200 |
21 22 23 24 | TY-30-49 TY-45-39 TY-75-295 TY-88-29 | 30 45 75 88 | 99.99% 99.9% 99.5% 99% | 0.5 | 2400*1900*2200 |
25 26 27 28 | TY-40-49 TY-60-39 TY-100-295 TY-120-29 | 40 60 100 120 | 99.99% 99.9% 99.5% 99% | 0.5 | 2500*2100*2500 |
29 30 31 32 | TY-50-49 TY-70-39 TY-120-295 TY-140-29 | 50 70 120 140 | 99.99% 99.9% 99.5% 99% |
0.5 |
2600*2200*2850 |
33 34 35 36 | TY-60-49 TY-90-39 TY-160-295 TY-190-29 | 60 90 160 190 | 99.99% 99.9% 99.5% 99% |
0.5 |
2800*2200*2500 |
| 37 | TY-80-49 | 80 | 99.99% | 0.5 | |
38 39 40 | TY-120-39 TY-200-295 TY-250-29 | 120 200 250 | 99.9% 99.5% 99% |
0.5 |
3200*1400*2800 |
41 42 43 44 | TY-100-49 TY-140-39 TY250-295 TY-290-29 | 100 140 250 290 | 99.99% 99.9% 99.5% 99% |
0.5 |
3500*1500*2800 |
| ... | ... | ... | ... | ... | ... |
|
| Packaging |
ActualSize | Actual |
Weight | Actual |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to
european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to
customers special request |
