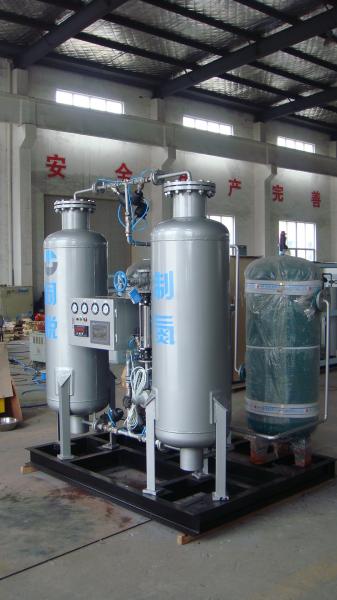

Gray High Pressure Nitrogen Generator Whole System Include Booster Pump

I, Nitrogen generator system design

1. Compressed air system

Air compressor supply the raw material air for the nitrogen generator. The nitrogen making system need high quality,stable pressure and enough air consumption.Air compressor should use the reliable, maintenance easily,low noise,screw air compressor.

Remark:We suggest air compressor prepare a spare set,to confirm the produce stable.

2. Compressed air clarification system

Compressed air pass through 9 grade filters,then pass through cooling type dryer.let the compressed air cooling,let the vapour in the air condensation into water,along with dust,oil drain out the machine.It’s better to put the cooling dryer in the compressed room.

After the cooling dryer is the filters,there are two group filters,one is 7 grade main pipeline filters,another is 5 grade high quality oil removing filter.7 grade main pipeline filter precision is 1um,filter out 1um and larger solid state and liquid particle,vestigital oil content 1ppm w/w.5 grade high quality oil removing filter filtrate precision 0.01um,remove 0.01um and larger solid state and liquid particle, 99.9999+% oil,the rest oil content 0.001 ppm w/w. Compressed air quality can reach 1 class according to ISO8573.1. Such clean and dry compressed air can inlet active carbon filter,air buffer tank then inlet nitrogen generator part,after PSA device make out the nitrogen purity ≥99%.

1. Pressure Swing Adsorption Nitrogen making system

Pressure swing adsorption (PSA) is an advanced gas separate technique,it is widely used in gas supply field in the world.

3 .1 Adsorbing material

Adsorbing material is the center part of PSA nitrogen generator,Normally use the the Carbon Molecular Sieve,it can adsorb the oxygen,CO2,water in the air,but can’t adsorb the nitrogen..

3.2 PSA principal

Because O2 and N2 these two gas molecule have diffusion rate difference on the molecule sieve surface,O2 smaller diameter can diffuse faster,most of them inlet micropore of CMS,the large diameter N2 diffuse slowly,less of them can inlet ,use this adsorption difference come true O2 and N2 separate.

Normal purity N2 generator main parts.

Jiangsu Tongyue Gas System Co.,ltd.  specializes in the production of nitrogen generators, air compressors, oxygen and other gas processing equipment.

The products are widely used in food, medicine, chemical industry, chemical fiber, metallurgy heat treatment, electronics, steel, coal, and other industries. The products involve in many fields and offer multiple functions. The company has extensive technical experience in the applications of different industrial gases, providing customers with a full range of gas solutions, while allowing them to enjoy convenient and efficient after-sales services.

The company has a number of patented technologies and intellectual property rights. System automation, mute for environmental protection, low energy consumption, high conversion rate and other features are strengthened on the basis of existing equipment, to maximize the value of customer’s production chain. The company insists on using high high-quality imported parts, having established and improved production processes, quality control system, and after-sales service evaluation system, to provide meticulous service to each customer.

Our businesses cover throughout the country, and are also exported to Southeast Asia, Europe and other overseas markets. Standing on the top of the industry, Tongyue is committed to advancing the development of the air separation industry. Constant technical R & D is our eternal mission.
