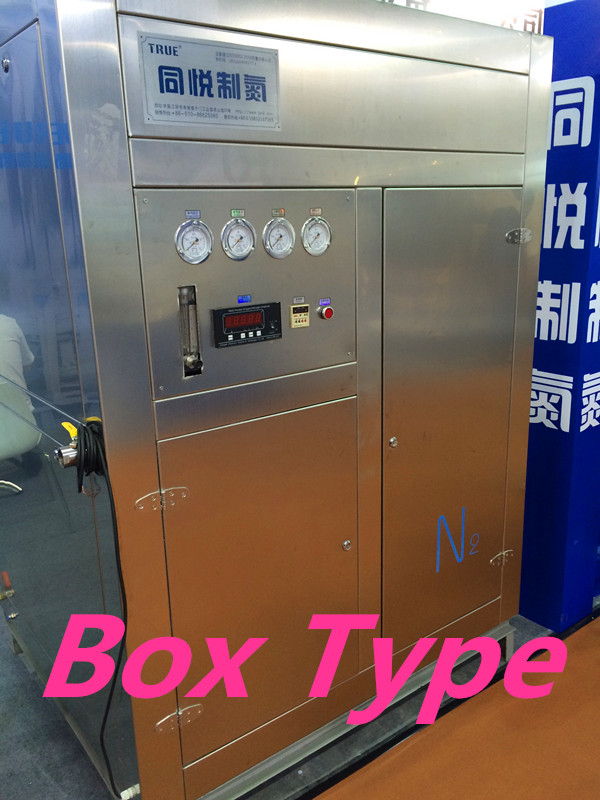

High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing

    Buy cheap High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing from wholesalers

    Buy cheap High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing from wholesalers
    • Buy cheap High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing from wholesalers
    • Buy cheap High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing from wholesalers
    • Buy cheap High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing from wholesalers
    • Buy cheap High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing from wholesalers

    High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing

    Ask Lasest Price
    Brand Name : True
    Model Number : TY
    Certification : CE,ISO
    Price : Negotiation
    Supply Ability : 20 sets/month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

    High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing

    High Purity Laboratory Nitrogen Generator PSA 0.1-0.65 Mpa Stainless Steel Housing


    Brief Technical Parameters index


    1.) Nitrogen flow: 1-3000Nm3/h.
    2.) Nitrogen purity: 97-99.9995%.
    3.) Nitrogen pressure: 0.05-1.0 Mpa.
    4.) Dew point: from -60 to -45 degree celsius.

    Full Automation


    All systems are designed for unattended operation and automatic Nitrogen demand adjustment.
    Low Electric Energy Consumption
    All systems are designed for Energy-Efficient.
    Lower Space Requirement and Short installation period
    The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory. Tongyue Machinery has own TRUE brand of gas separation equipments.
    Installation is very easy and convenient.
    Fast Start-Up
    Start-up time is about 30 minutes to get desired Nitrogen purity. So these units can be switched ON & OFF as per Nitrogen
    Demand changes.
    High Reliability
    Very reliable for continuous and steady operation with constant Nitrogen purity. Plant availability time is better than 98% always.
    Molecular Sieves Life
    Expected Molecular sieves life is more than 10-years i. e. Whole life time of Nitrogen plant. So no replacement costs.
    Simple operation and maintenance
    All systems are designed by integrated solution for easy-operation and easy-maintenance.


    Normal purity N2 generator main parts.


    DescriptionTypeQuantityRemarks
    PSA adsorption towerProfessional design

    2 pieces

    /10kg

    Jiangyin Shuangqiu
    CMSMSC-3KT-1721320kgJapan Takeda/Wutian
    Vortex airflowProfessional design2 piecesTechnical Carbotech from Germany
    Self complement compact deviceProfessional design2setsJiangyin Tongyue
    single unit processing part/1 setSMC-Japan
    Sample pressure reduce valve/1 pieceSMC-Japan
    Direct current 24V power/1 setTaiwan-Mingwei

    Pneumatic valves

    DN805 piecesBurkert Germany,approve
    DN404 pieces
    DN151 pieces
    Magnetic valve4V210-24V10 piecesTaiwan Airtac
    Metal flow meterLZZ-401 pieceChangzhou Shuanghuan
    Control systemTPC7062K1set(color touch screen )Kunlun Tongtai
    MufflerTY-300X1 setJiangyin Tongyue
    Pipe valve systembprofessional produce1 setJiangyin Tongyue
    PLC controllerS7-2001 setSiemens Germany
    Nitrogen analyzerP860-3N1 setShanghai Changai


    Factory name/addressManufactured itemannual production capacity

    Jiangsu Tongyue Gas system Co., Ltd

    2030 Zhengcheng Road, Xishiqiao Town, Jiangyin City

    pressure swing adsorption nitrogen geneerator350 sets/year

    Ammonia decomposition hydrogen production equipment

    300 sets/year

    methanol reforming hydrogen

    50 sets/year
    other gas equipment90 sets/year
