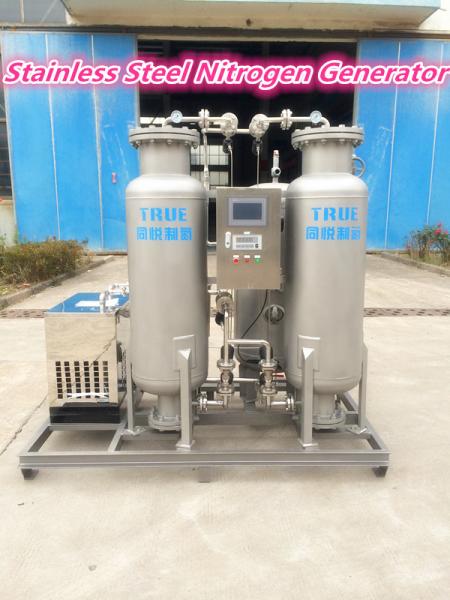

99.999% Purity Stainless Steel Onsite Nitrogen Generator For Food Fresh Packing

Product introduction:

PSA Nitrogen Generator will use the two towers’ structure. Filled with CMS as the adsorbent. One tower produces the nitrogen gas. The other is for regeneration. Using PLC to control the pneumatic valves, it can come true the alternating generation.

Classic application:

Cleaning containers, pipes, reactor an isolation chamber; synthetic fibre spin, wire-drawing chloride, equipment corrosion; to fill with nitrogen in coating paint production, prevent the polymerization when the paint drys; to provide protection gas for oil tanker(nitrogen gas for sealing and cleaning on the oil fraction, nitrogen fertilizer raw materials, catalyst protection, ect

It is mainly used in pharmaceutical packaging, medical gas replacement, medicine conveying gas, etc

The principal flow diagrams

Air source as raw material compressed into the air storage tank by air compressor and the oil, water, and dust will be attached to the container wall and flow to the tank bottom. So should open the drain valve regularly. The other part will be into the compressed air purification system.

Air purification system should be consisted of three different filters, a degreaser, and cooling dryer. By freezing moisture ejector and fractional filtration, the compressed air will be removed with liquid water, oil and dust. It can make the dew pointof compressed air to be 2-10 ℃, and the oil content dropped to 0.001ppm, dust filter to 0.01µm, it can ensure the inlet air of PSA nitrogen and drain oxygen. All of nitrogen at the pop of the tower will be transmitted to nitrogen storage tank by the pipe, and via the flow meter into using locations.

Specification

1. Place of Origin: Jiangsu,China.
2. Brand Name: TRUE.. Model No.: TY30-59
4. Color: Silver,bright and white.
5. Nitrogen flow: 30M3/h.
6. Nitrogen purity: 99.999%.
7. Dew point:-45 degree Celsius.

8. Warranty period: One and a half years.
9. Product life: At least 10years or longer.
10. Outlet pressure: 0.05-0.65Mpa.
11. Material: Stainless steel.
12. Packaging details: Standard,if need wooden,will charge for cost.
13: Delivery time: Within 30days,when received 50% advance payment.


Applications
1.) Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.
2.) Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical, urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.
3.) Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

Main parts of nitrogen generator

Jiangsu Tongyue Gas System Co.,ltd.  specializes in the production of nitrogen generators, air compressors, oxygen and other gas processing equipment.

The products are widely used in food, medicine, chemical industry, chemical fiber, metallurgy heat treatment, electronics, steel, coal, and other industries. The products involve in many fields and offer multiple functions. The company has extensive technical experience in the applications of different industrial gases, providing customers with a full range of gas solutions, while allowing them to enjoy convenient and efficient after-sales services.

The company has a number of patented technologies and intellectual property rights. System automation, mute for environmental protection, low energy consumption, high conversion rate and other features are strengthened on the basis of existing equipment, to maximize the value of customer’s production chain. The company insists on using high high-quality imported parts, having established and improved production processes, quality control system, and after-sales service evaluation system, to provide meticulous service to each customer.

Our businesses cover throughout the country, and are also exported to Southeast Asia, Europe and other overseas markets. Standing on the top of the industry, Tongyue is committed to advancing the development of the air separation industry. Constant technical R & D is our eternal mission.
