4 Grade Filters On Site PSA nitrogen generator Gas Systems 100 Nm3/H Purity 99.9% With Altas Copco

Ask Lasest Price
Brand Name :	True
Model Number :	TY100-99.9%
Certification :	CE,ISO
Price :	as negotiate
Supply Ability :	10 sets per month
Delivery Time :	30 days

Add to Cart

Product Details
Company Profile

4 Grade Filters On Site PSA nitrogen generator Gas Systems 100 Nm3/H Purity 99.9% With Altas Copco

Oil industry used gas purging container type onsite nitrogen generator 100Nm3/h purity 99.9% with Altas copco

Product Description

Characteristics:

1.N2 purity is accurate and reliable due to the result displayed online on numeric meter;
2.Furnish four-grade filters and drier to remove water,oil and impurity of compressed air to ensure N2 generator running smoothly and steady guarantee life achieve more than 10 years;
3.Furnish N2 outlet filter ensure nitrogen gas clear and purity which is sufficient suitable for foodstuff packing;
4.Reasonable N2 purity,can be adjusted from 95% to 99.9%;
5.Compact in frame, light in weight, steady in performance and facilitated in operation.

Number	Name	Specification and Type	Manufacture	Quantity	Main Technological Indexes
	Air Compressor Pry
	Screw air Compressor	G355	Atlas-Copco	1 Set	Rated Air Capacity:≥57Nm3/min Rated Pressure:0.8MPa Oil Content in Air:≤3ppm Air Temperature:≤Ambient Temperature +70-80℃ Cooling Method:Air Cooling Power Rating:355KW Driving Mode: External Dimension: 417421202500mm
	Air Storage Tank	CG1/8	TRUE GAS	1 Set	Rated Pressure:0.8Mpa Volume: 1m³ Material:Carbon Steel
	Air Handling
	Three Level Filters	CF006 TF006 AF006	Italy ATS	3 pieces	Rated Pressure:1.0Mpa Connection Mode:DN25 Rated Handling Flow:25 Nm3/min Air Quality After Filtration: Particulate≤0.01μm oil≤0.003ppm Filter Pressure Drop:≤0.2bar Filter of all levels of the configuration system shall be configured with timed electronic discharge valve and manual draining valve.
	Refrigeration Dryer	HF-25	TRUE GAS	1Set	Rated Pressure:0.6-1.0MPa Rated Handling Flow:25Nm³/min Pressure Loss in the System:≤0.2bar Rated Inlet Air Temperature:≤50℃ Outlet Air Dew Point Temperature :3℃ Power Rating:4.5KW
	Connecting Pipeline and Valve	/	TRUE GAS	1 Set	Structure:Seamless Steel Tubes for Liquid Service Material:Carbon Steel of High Quality
	skid-mounted nitrogen generator
	Molecular Sieve	3KT-172	Japan	1 Batch	Nitrogen Purity:≥99.9％ Capacity:300Nm³/h Design Inlet Pressure:0.7Mpa Design Operating Temperature:45℃ Maximum Operating Temperature:65℃
	Absorption Tower	XF-300	TRUE GAS	1 Set	Working Pressure:0.7Mpa Material:Q235B Design Pressure:0.8Mpa
	PLC	S7-200	Siemens	1 Set	Control Mode:PLC Control Operating Voltage:24VDC Output Form:Relay Output All Components are Imported, Assembled to a Full Set Domestically
	Pneumatic Valve	DN65 DN40	SKF	10 Pieces 6pieces	Start Mode:Pneumatic Control Mode:Solenoid Valve Material: Stainless 304
	Solenoid Valve	3v-210	Taiwan AirTac	8 Pieces
	Nitrogen Gas Analyzer	P860-5N	Chang Ai	1Piece	Measuring Range:78％~99.99％ Principle of Sensors: Ion Beam; Nitrogen Sensor Measuring Mode: Gas Inlet
	Nitrogen Buffer Tank	CG1/8	TRUE GAS	2 Piece	Rated Pressure: 0.8Mpa Design Pressure: 0.84Mpa Volume: 1 m3 Material: Carbon Steel
	Flow Meter	LZB-25	Changzhou Shuanghuan	3Piece	Rated pressure:1.0Mpa Diameter:DN40
	Craft Manifold,Valve	/	TRUE GAS	1 Set	Structure:Seamless Steel Tubes for Liquid Service Material:Carbon Steel of High Quality
	Skid-mounted	/	TRUE GAS	1Set	Structure: Steel Structure Base Material:Low-Carbon Steel
	Nitrogen Storage Tank	CG5/8	TRUE GAS	1Piece	Rated Pressure:0.8Mpa Design Pressure:0.84Mpa Volume: 5m³ Material: Carbon Steel

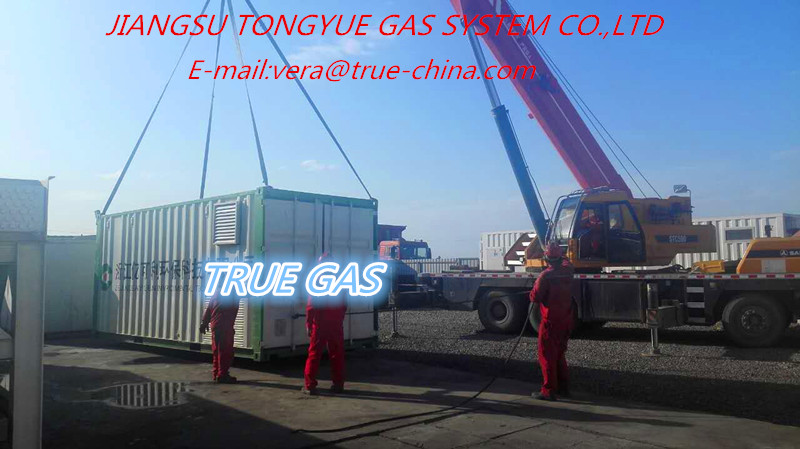

	Container	20 feet	TRUE GAS	3 sets	Material: Carbon steel
	Other Auxiliaries
	Finished Documents	/	TRUE GAS	1 Set	Complete Set of Equipment Data
	Accessories	/	TRUE GAS	1 Set	Original Supporting Equipment Accessories

When the pressure rises, the carbon molecular sieve adsorbs the oxygen and produces the nitrogen gas. When the pressure decreases, the carbon molecular sieve starts to desorb the oxygen until the pressure equals to the ordinary pressure. At that time, the carbon molecular sieve desorbs the oxygen completely. The PSA nitrogen generator is usually equipped with adsorption towers. It controls the pneumatic valve by PLC, thus the two adsorption towers can produce the nitrogen gas alternatively. One tower adsorbs the oxygen and produces nitrogen gas, the other desorbs to regeneration to produces the required nitrogen.

SMT nitrogen generator combines the features of lead-free soldering in SMT industry, nitrogen purity is generally between 99.9%～99.999%, the flow of nitrogen generator of each soldering furnace is generally between 10～30Nm3/hr (special specifications are calculated according to actual flow), the dew point is between -40℃～-60℃, and nitrogen pressure is between 0.5-0.6MPa. SMT dedicated nitrogen making solution can make the flux correct and active, reduce the residual amount of flux, enhance soldering quality and make the soldered surface more attractive.

Technical Indicators

Nitrogen flow: 0-2,000Nm3/h O2: ≤1ppm Dew point: ≤-70℃ Nitrogen purity: 99.99%-99.999%

molecular sieve cave. That’s all for the PSA nitrogen generation process.
