    PSA Technology Modular Nitrogen Generator 95-99.999% Purity

    Ask Lasest Price
    Brand Name : True Gas
    Model Number : TYN
    Certification : CE ,ISO
    Price : as negotiable
    Payment Terms : , T/T, L/C
    Supply Ability : 300 sets per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

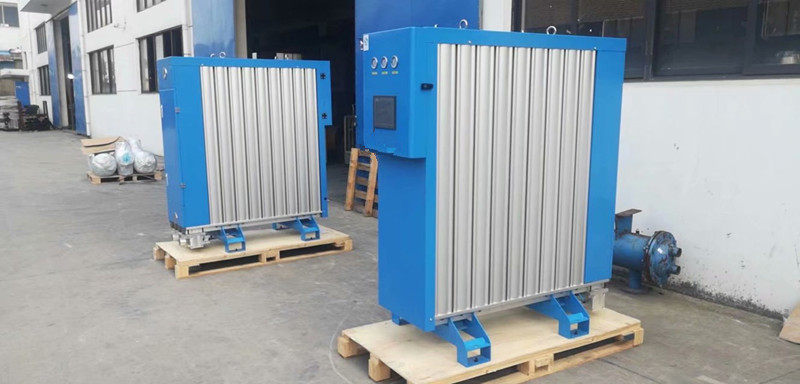

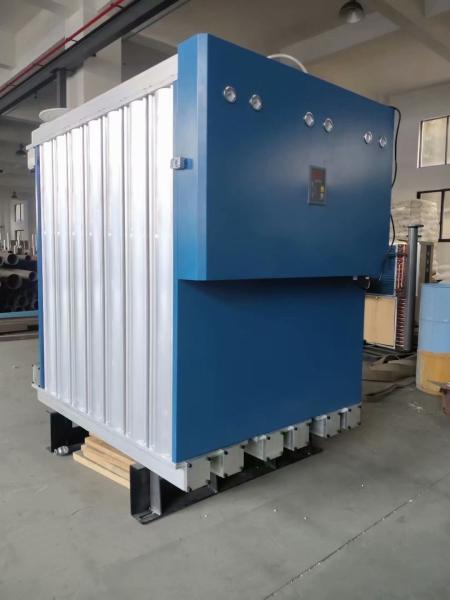

    PSA Technology Modular Nitrogen Generator 95-99.999% Purity


    New technology modular nitrogen generator purity 95-99.999%
    TYNMK series Modular nitrogen generator adopt PSA(pressure swing adsorption)technology,using compressed air as raw materials,quality selection of adsorbent,and under certain pressure,the adsorption capacity of adsorbents for oxygen and nitrogen is different,though programmable program control pneumatic valve opening and closing to control the adsorber alternate cycle,pressure adsorption and vacuum stripping,complete separation of oxygen and nitrogen,get high purity .

    High reliability Remote control Easy for operation PLC control

    Modular nitrogen generators are widely used in various industries such as medicine, scientific research institutes, 3D printing, laboratories, food, SMT, semiconductor packaging and testing, chemical industry, steel, shipbuilding and marine engineering.
    We focus on scientific and technological research and development, provide customers with more comprehensive, more convenient and more intimate services, continue to pursue innovative products and improve service models, and extensively cooperate with domestic and foreign research institutes in product development, design and scientific research to create for customers Higher value.

    Modular type PSA nitrogen generator

    ModelSpecification
    G-5MZ
    N2 capacityNm3/Hr5
    N2 purity%99.99%
    N2 outlet pressureMpa0.1~0.6
    Air inlet pressureMPa0.7~0.8
    Air inlet temperature≤38
    Dew point≤-40
    Working condition
    Air compressor flowm³/Min0.5
    Max working pressureMPa0.8
    Ambient temperature40
    N2 outlet diaDN15
    Air inlet diaDN15
    Working cycleS40-55
    Regeneration modePressure swing analysis and alternate purging
    Voltage:220V/50Hz
    Pneumatic valvemmDN15*5
    Mufflermmcustomizing
    AdsorbentCMS2601 batch
    ControllerPLCSiemens
