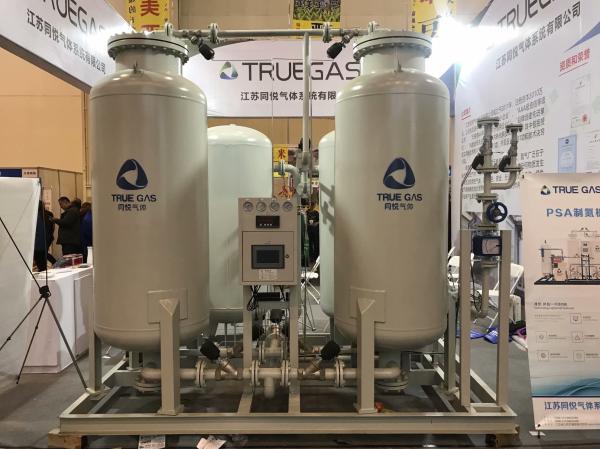

High Purity PSA Nitrogen Generator Nitrogen Making Machine For Food
Packaging
Nitrogen is normally used as protective gas .
Oxygen and nitrogen are separated by different-diffusion rate in
CMS.Nitrogen purity and capaity can be adjustable to meet
customer’s requirements.
Technical index:
· Flow:3~2000Nm3/h
· Purity: 99.99%-99.9995%
· Dew point:-45℃
· Output pressure:0.1~0.8Mpa
Operational Principle of PSA Nitrogen Generation:
PSA nitrogen generation adopts carbon molecular sieve as adsorbent
whose capacity of adsorbing oxygen is larger than adsorbing
nitrogen. The two adsorbers (a&b) alternately adsrbing and
regenerating to separate oxygen from nitrogen in air to obtain
purified nitrogen by Auto-operated valves controlled by PLC.
Typical application:
Nitrogen is used in the surface of storage liquid and marine
engineering as protective gas. Using nitrogen to blow and sweep
containers, pipelines, reactors and isolation rooms. Nitrogen is
used in synthetic fiber spinning, wiredrawing anti-chlorination,
equipment anti-corrosion, paint, preventing polymerization during
the oil drying. Nitrogen is also used in oil tanker as protective
gas (the surface of oil is sealed and cleaned by nitrogen.).
Nitrogen can be used in dry quenching, catalyst regeneration, oil
fractionation, nitrogen fertilizer raw materials, catalyst
protection, washing gas, rubber packaging and storage, tire
production etc., nitrogen pressure injection oil drilling and so on
TRUE nitrogen generator function:
1, Strict air treatment system
2, Unique low-speed diverter and non-friction soft compaction
device
3, durable pneumatic valve
4, low-noise silencer of innovative design
4, unique touch switch and LCD in the nitrogen industry; Data can
be modified arbitrarily
6, of high automation and can be duty-free
5, of reasonable and compact structure
6, efficient nitrogen-making in short period
Technical advantages of filling the molecular sieve
The following two diagrams are the density of the storm loading
method and the aging frequency modulation filling method (Tong
Yue), which show the technical advantages of Tong Yue.
| serial number | Patent No. | Patent No.( Accept No.) | patent families |
| 1 | PSA highly efficient starting device | Patent No.:ZL 2010 2 0139342.9 | utility model |
| 2 | Automatic control system of nitrogen generator with frequency
conversion | Patent No.:ZL 2012 2 0408277.4 | utility model |
| 3 | Exhaust gas recycling and utilization device | Patent No.:ZL 2013 2 0867590.9 | utility model |
| 4 | Automatic control device for nitrogen purity | Patent No.:ZL 2013 2 0867632.9 | utility model |
| 5 | PSA constant pressure constant regeneration system | Patent No.:ZL 2010 2 0139343.3 | utility model |
| 6 | PSA cyclone umbrella type honeycomb air flow diffusion device | Patent No.:ZL 2013 2 0139344.8 | utility model |
| 7 | PSA low decibel silencer | Patent No.:ZL 2013 209 39345.2 | utility model |
| 8 | Top gathering fountain type gas collecting device | Patent No.:ZL 2010 2 0569506.1 | utility model |
| 9 | Dynamic cylinder pressing device | Patent No.:ZL 2011 2 0015073.X | utility model |
