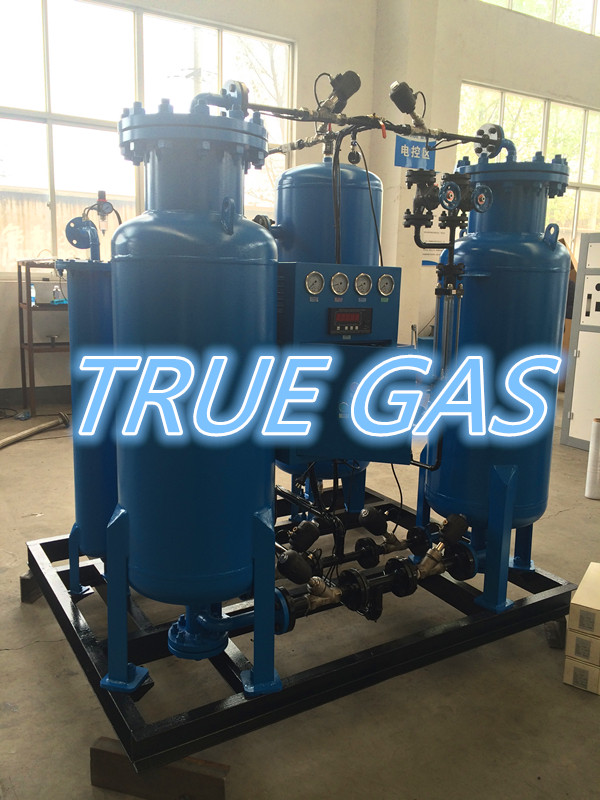

Carbon Steel Industrial Nitrogen Generator For Metallurgy Industry 1 - 2000 Nm3/H

Internal structure diagram
Special air diffusion equipment is set inside the adsorption tower. Firstly, compressed air enters the neck with cyclone equipment, through the alumina ceramic ball specially used for diffusion (using the spherical shape and hardness of the ceramic ball), the gas flows in the shape of "s" during diffusion.

Then, through the double-layer stainless steel wire mesh and the activated molecular sieve, it can fully contact with the carbon molecular sieve. which not only greatly reduces the impact force of gas on carbon molecular sieve, also makes the gas more uniform in the adsorption process, which is conducive to improving the nitrogen production efficiency and the service life of the carbon molecular sieve.

Technical index:

·Flow:3~2000Nm3/h ·

oxygen content:≤ 1 ppm ·

Dew point: ≤-70℃ ·

Hydrogen content:3%-35%

Application in heat treatment industry: steel, iron, copper and aluminum product annealing and carbonization, high temperature kiln protection, low temperature assembly and plasma cutting of metal parts, and so on. Heat treatment nitrogen sources in nitrogen-based atmosphere such as steelmaking converter sealing, blast furnace top sealing, blast furnace ironmaking pulverized coal injection, continuous casting, continuous rolling, steel annealing, stress relief, aging, quenching and heating, carburizing, nitrocarburizing and vacuum quenching, protective gas in the soldering and powder metallurgy sintering processes, as well as cleaning gas and diluent gas.

Normal purity N2 generator main parts.

Jiangsu Tongyue Gas System Co.,ltd.  specializes in the production of nitrogen generators, air compressors, oxygen and other gas processing equipment.

The products are widely used in food, medicine, chemical industry, chemical fiber, metallurgy heat treatment, electronics, steel, coal, and other industries. The products involve in many fields and offer multiple functions. The company has extensive technical experience in the applications of different industrial gases, providing customers with a full range of gas solutions, while allowing them to enjoy convenient and efficient after-sales services.

The company has a number of patented technologies and intellectual property rights. System automation, mute for environmental protection, low energy consumption, high conversion rate and other features are strengthened on the basis of existing equipment, to maximize the value of customer’s production chain. The company insists on using high high-quality imported parts, having established and improved production processes, quality control system, and after-sales service evaluation system, to provide meticulous service to each customer.

Our businesses cover throughout the country, and are also exported to Southeast Asia, Europe and other overseas markets. Standing on the top of the industry, Tongyue is committed to advancing the development of the air separation industry. Constant technical R & D is our eternal mission.
