Metallurgy Industry 99.99% PSA Nitrogen Generator
PSA Nitrogen Generator Application
Nitrogen is used in steel making converter & roof of blast furnace
as sealing gas and in Converter pulverized coal injection,
continuous casting, rolling, steel annealing, stress elimination,
aging, quenching heating, carburization, nitrocarburizing, vacuum
hardening etc. as heat treatment gas resource. Nitrogen is used in
welding and powder metallurgy sintering process as protective gas
as well as cleaning and diluting gas.
PSA Nitrogen Generator Parameters
| serial number | Patent No. | Patent No.( Accept No.) | patent families |
| 1 | PSA highly efficient starting device | Patent No.:ZL 2010 2 0139342.9 | utility model |
| 2 | Automatic control system of nitrogen generator with frequency
conversion | Patent No.:ZL 2012 2 0408277.4 | utility model |
| 3 | Exhaust gas recycling and utilization device | Patent No.:ZL 2013 2 0867590.9 | utility model |
| 4 | Automatic control device for nitrogen purity | Patent No.:ZL 2013 2 0867632.9 | utility model |
| 5 | PSA constant pressure constant regeneration system | Patent No.:ZL 2010 2 0139343.3 | utility model |
| 6 | PSA cyclone umbrella type honeycomb air flow diffusion device | Patent No.:ZL 2013 2 0139344.8 | utility model |
| 7 | PSA low decibel silencer | Patent No.:ZL 2013 209 39345.2 | utility model |
| 8 | Top gathering fountain type gas collecting device | Patent No.:ZL 2010 2 0569506.1 | utility model |
| 9 | Dynamic cylinder pressing device | Patent No.:ZL 2011 2 0015073.X | utility model |
PSA Nitrogen Generator Operational Principle
PSA nitrogen generation adopts carbon molecular sieve as adsorbent
whose capacity of adsorbing oxygen is larger than adsorbing
nitrogen. The two adsorbers (a&b) alternately adsrbing and
regenerating to separate oxygen from nitrogen in air to obtain
purified nitrogen by Auto-operated valves controlled by PLC.
PSA Nitrogen Generator function:
1, Strict air treatment system
2, Unique low-speed diverter and non-friction soft compaction
device
3, durable pneumatic valve
4, low-noise silencer of innovative design
4, unique touch switch and LCD in the nitrogen industry; Data can
be modified arbitrarily
6, of high automation and can be duty-free
5, of reasonable and compact structure

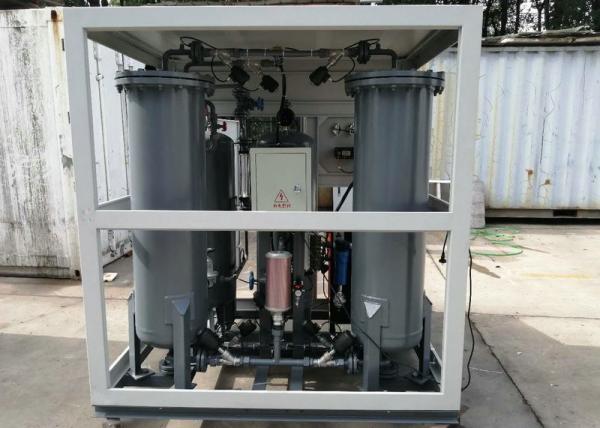

PSA Nitrogen Generator Pictures
